05-24 Brute Force Teryx 750 85mm Cylinders Wiseco Pistons Engine Top End Rebuild

Kawasaki Brute Force 750 & Teryx 750 85mm Top End Rebuild Kit Wiseco Pistons

📖 Product Description

Restore dependable power and stock-bore performance with this Kawasaki Brute Force 750 & Teryx 750 Top End Rebuild Kit. Built for model years 2005-2024, this complete package features 85mm Nikasil-coated cylinders, Wiseco forged 11.5:1 compression pistons, a Cometic gasket kit with MLS head gasket, and NGK spark plugs to help you refresh your engine with proven components that are built for durability, performance, and long service life.

🔥 Key Features & Benefits

This complete top end rebuild kit is designed for riders who want a high-quality, bolt-on solution without unnecessary guesswork. From the precision-fit cylinders to the performance-focused Wiseco pistons, every major top-end service component is covered.

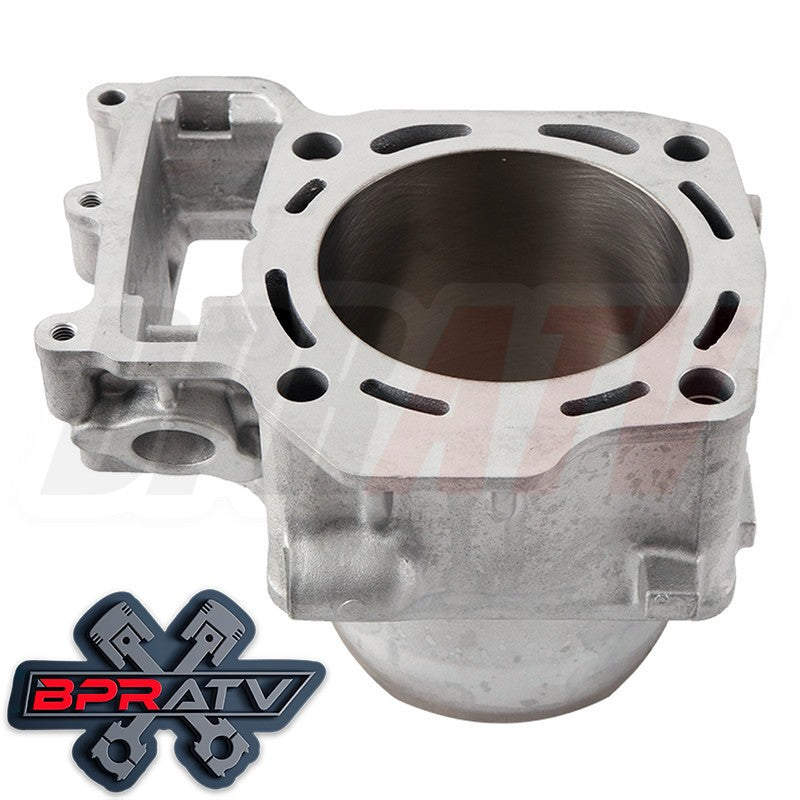

• Includes aftermarket 85mm stock bore cylinders with durable Nikasil coating and a 1-year warranty

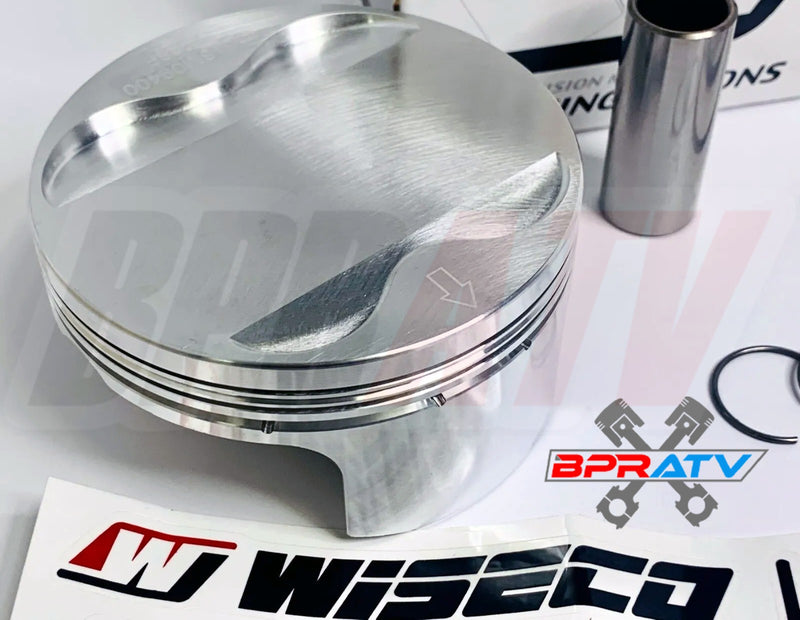

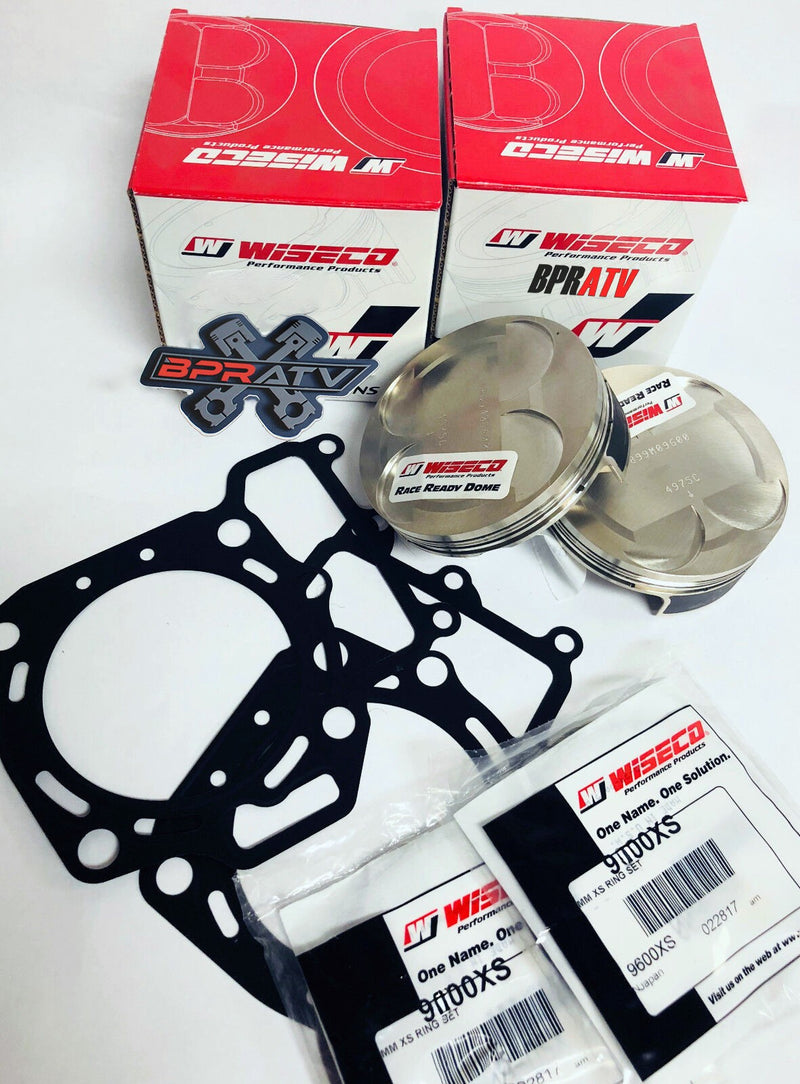

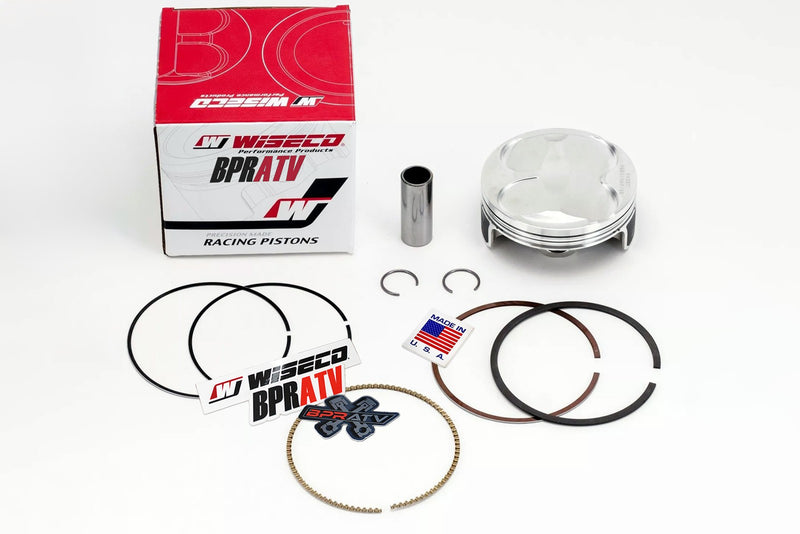

• Wiseco forged pistons feature 11.5:1 compression for strong, responsive performance

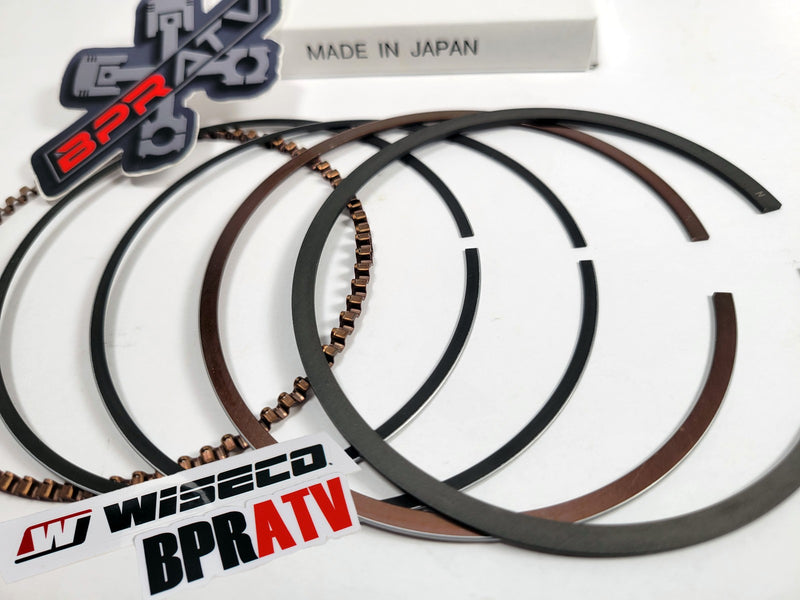

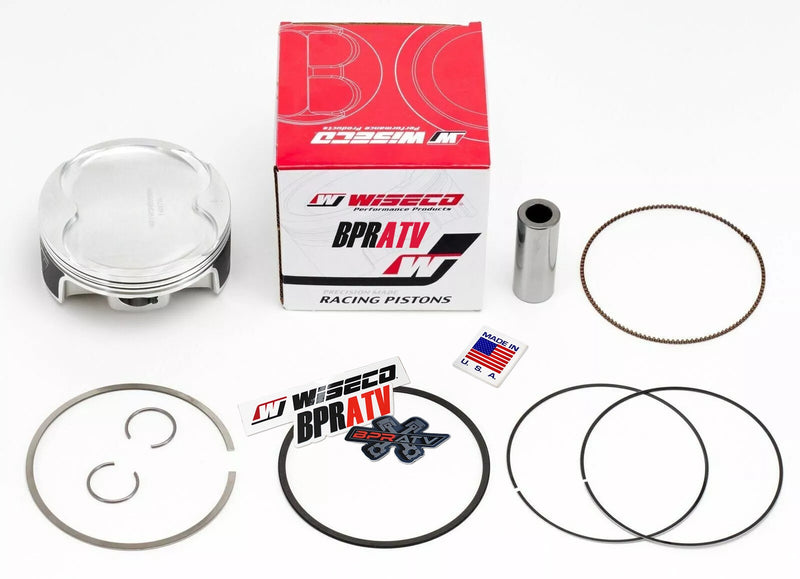

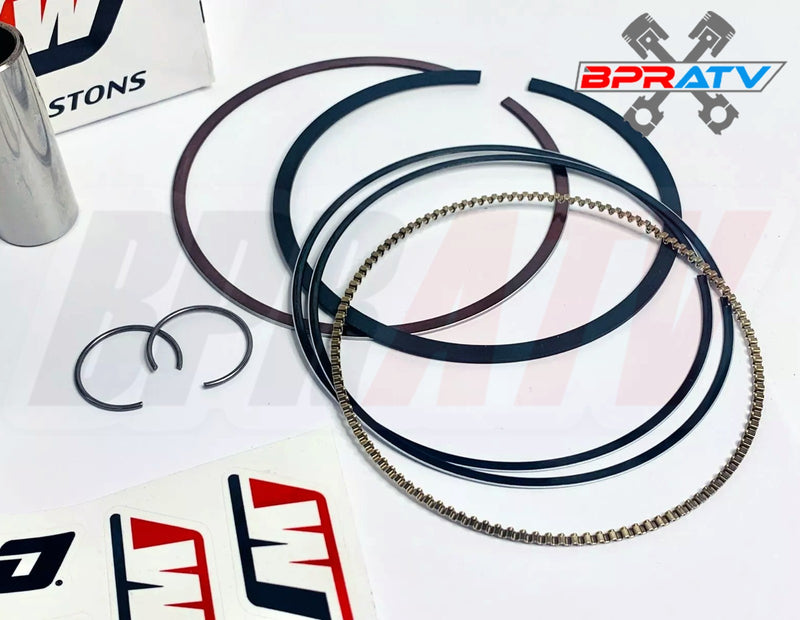

• Piston package includes rings, wrist pins, and circlips for complete installation readiness

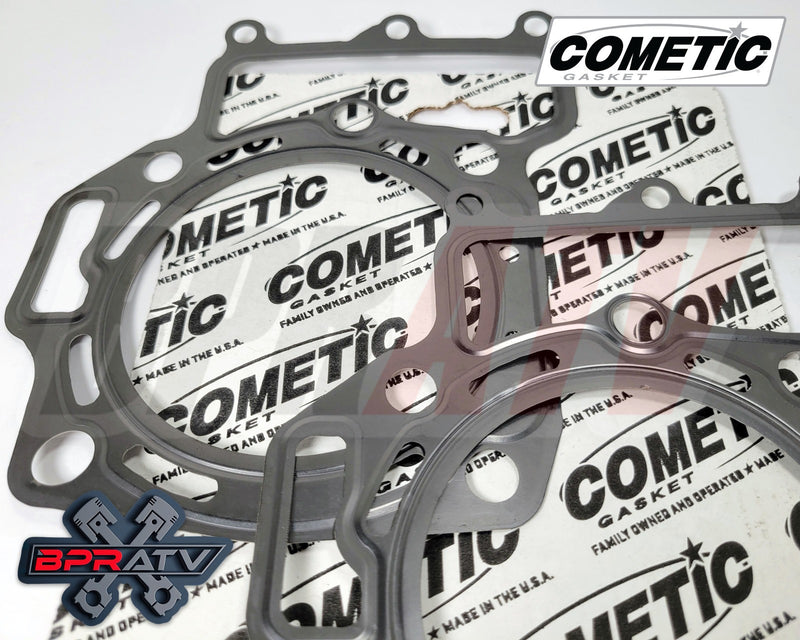

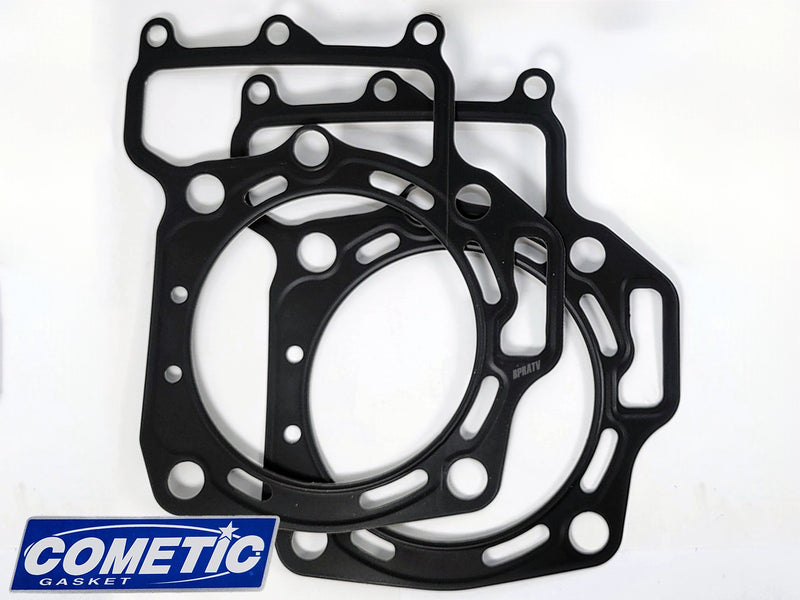

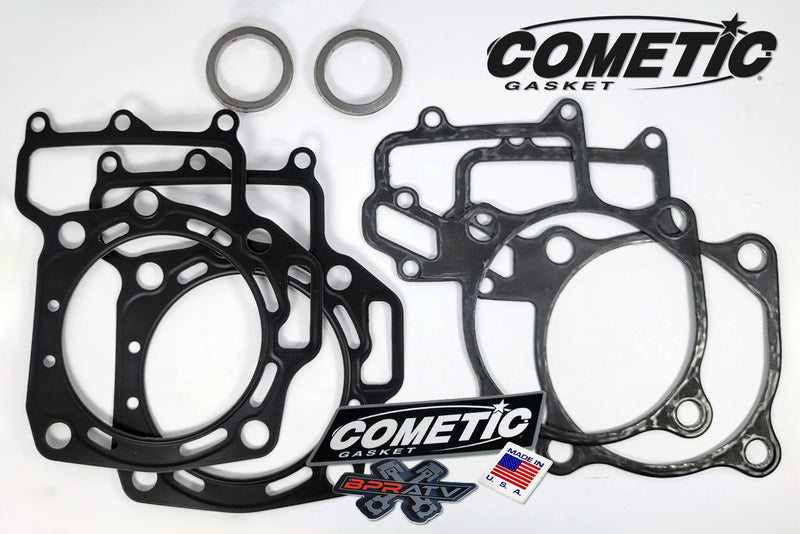

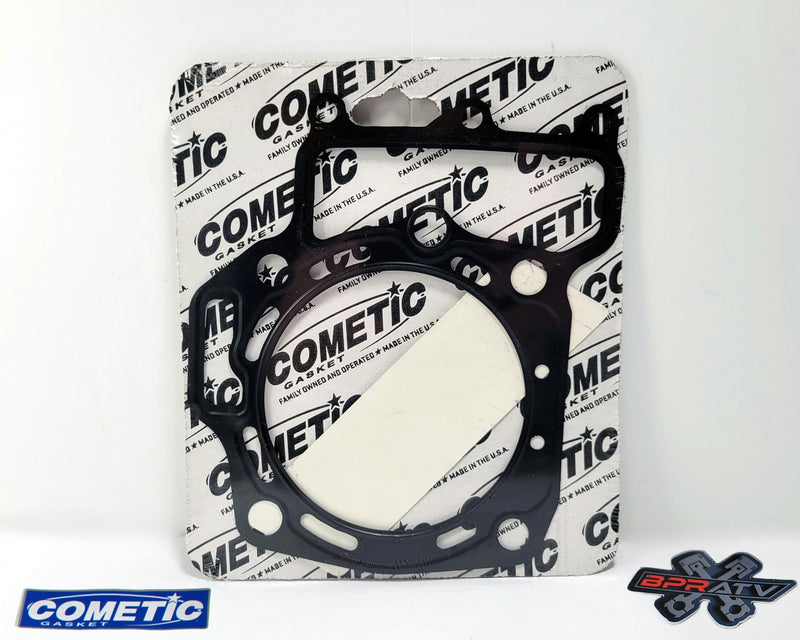

• Cometic gasket kit includes an MLS head gasket for reliable sealing under demanding conditions

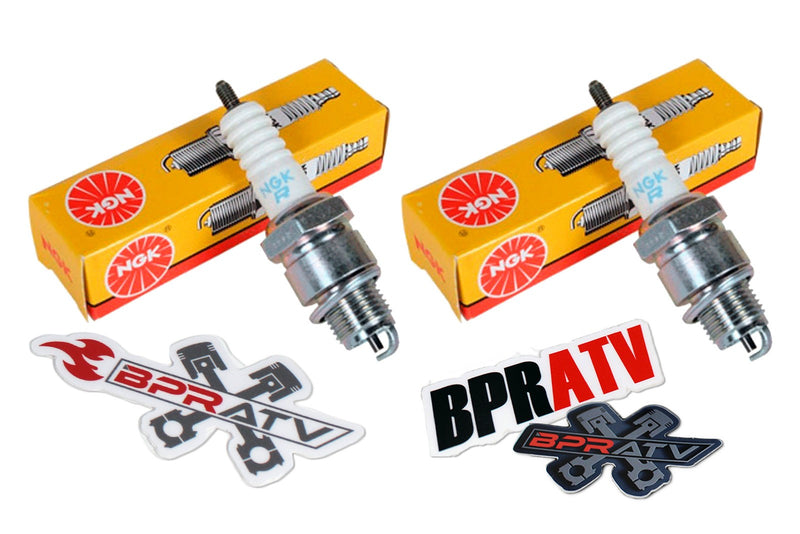

• Also includes NGK spark plugs, giving you a more complete and convenient top end refresh

✅ Compatibility

This kit fits Kawasaki Brute Force 750 and Kawasaki Teryx 750 applications from 2005 through 2024. It is a stock bore 85mm setup, so no cylinder boring or machining is typically required during a standard rebuild.

• Fits Kawasaki Brute Force 750 models from 2005-2024
• Fits Kawasaki Teryx 750 models from 2005-2024
• 85mm stock bore design supports a direct replacement-style rebuild
• Important for 2015+ models: tighter piston-to-head clearance may occur, especially on the rear cylinder
• Recommended for 2015+ applications to perform mock assembly and verify clearance using the clay method; typical safe clearance range is approximately .040"-.060" (1.0-1.5mm)

⚠️ Important Note for 2015+ Models

For 2015+ Kawasaki Brute Force / Teryx 750 models, slight differences in cylinder head design can result in tighter piston-to-head clearance, particularly on the rear cylinder when using high-compression pistons.

“Clearance” refers to the space between the piston at top dead center and the cylinder head. If this clearance is too tight, it can lead to serious engine damage, including piston-to-head contact or valve interference.

Because this kit includes 11.5:1 compression Wiseco pistons, it is important to verify proper clearance during installation.

🔧 Recommended Installation Check

• Perform a mock assembly before final installation
• Rotate the engine by hand to ensure no contact
• Use the clay method (Plastigage) to measure clearance if possible

👉 Recommended minimum clearance: .040”–.060” (1.0–1.5mm)

🛠️ If Clearance Is Too Tight

• Lightly clearance the combustion chamber (most common solution)
• Use a thicker head gasket (available upon request)
• Verify proper seating and assembly

💡 Important: Immediately requesting a thicker head gasket may not solve the issue and can result in needing to switch back to the stock gasket. Proper clearance measurement is required before making changes.

❓ 2015+ Model FAQ

• Q: Do I need to do anything special for 2015+ models?

  A: Yes—on 2015+ Brute Force / Teryx 750 models, we recommend checking piston-to-head clearance during installation. Due to engine design changes and higher compression pistons, the piston may sit closer to the head.

• Q: What happens if clearance is too tight?

  A: If clearance is too tight, it can lead to serious engine damage, including piston or valve contact.

• Q: What should I do during installation?

  A: Perform a test fit, rotate the engine by hand, and ideally use the clay method (Plastigage) to verify clearance.

• Q: What is a safe clearance range?

  A: A safe range is typically .040”–.060” (1.0–1.5mm).

• Q: Can I just use a thicker head gasket?

  A: A thicker gasket may help, but it is not a guaranteed fix without proper measurement. In some cases, you may still need to return to a stock gasket after checking clearance.

❓ Frequently Asked Questions (FAQ)

• Q: Does this kit require machining?

  A: No. This is a stock bore 85mm bolt-on kit, so machining is typically not required for a standard rebuild.

• Q: What exactly is included in the kit?

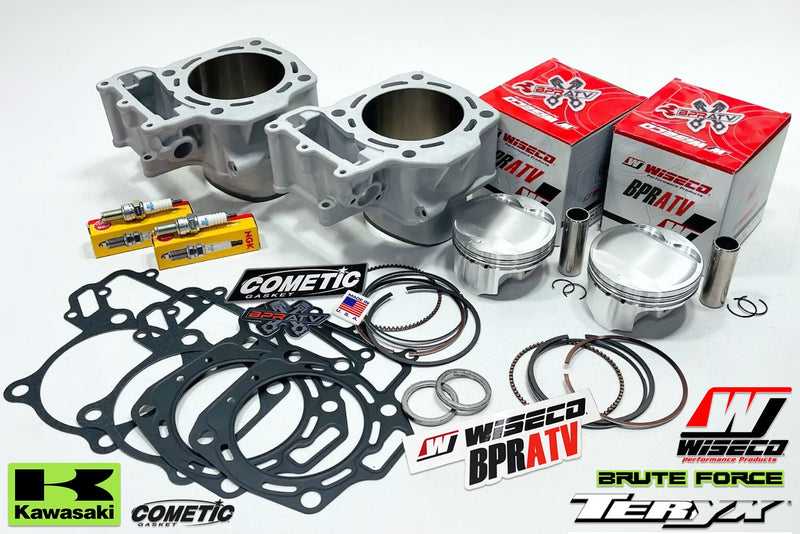

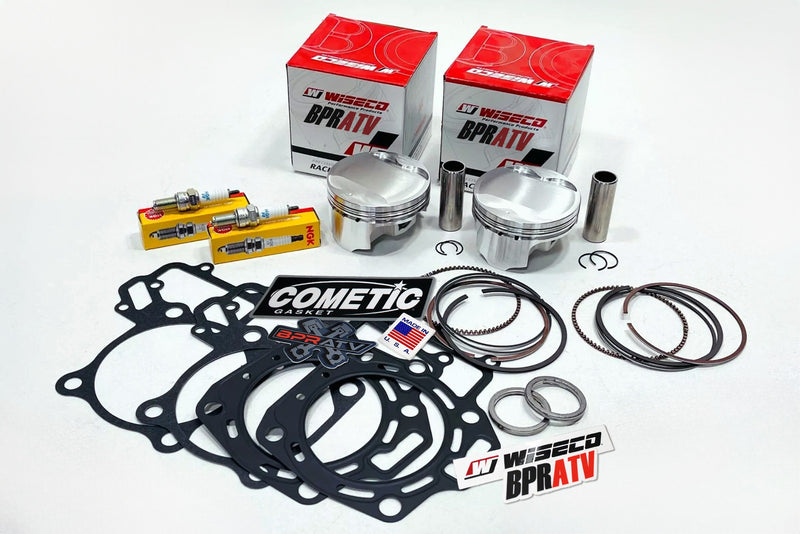

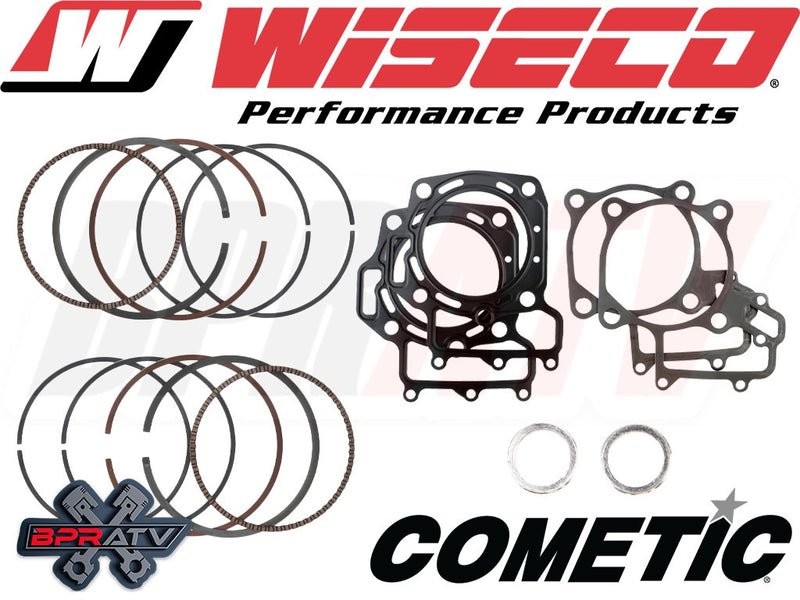

  A: You receive 85mm Nikasil-coated cylinders, Wiseco pistons, rings, wrist pins, clips, a complete Cometic gasket kit with MLS head gasket, and NGK spark plugs.

• Q: Will this kit increase performance?

  A: Yes. The 11.5:1 compression Wiseco pistons are designed to deliver a noticeable improvement in throttle response and overall performance compared to tired worn-out OEM components.

• Q: What should I know about 2015+ models?

  A: On some 2015+ models, cylinder head changes can create tighter piston-to-head clearance. BPRATV recommends a mock assembly, hand rotation, and clay check before final assembly. If clearance is too tight, lightly clearancing the head or using a thicker head gasket may help, but proper verification is still required.
